Gasboy Model 300 Hand Pump Parts and Rebuild Kit

Gasboy Model 300 Hand Pump Parts and Rebuild Kit

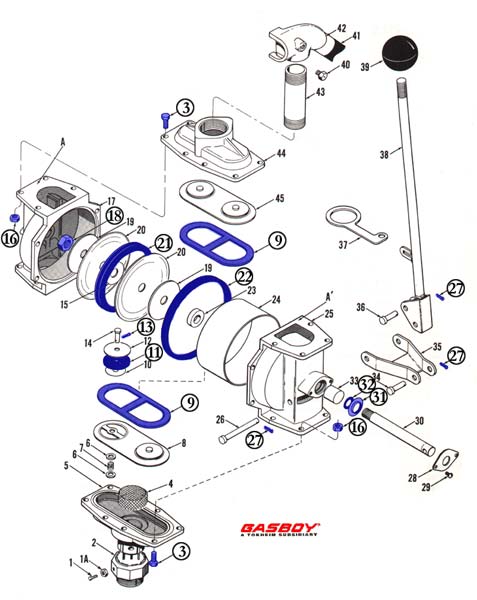

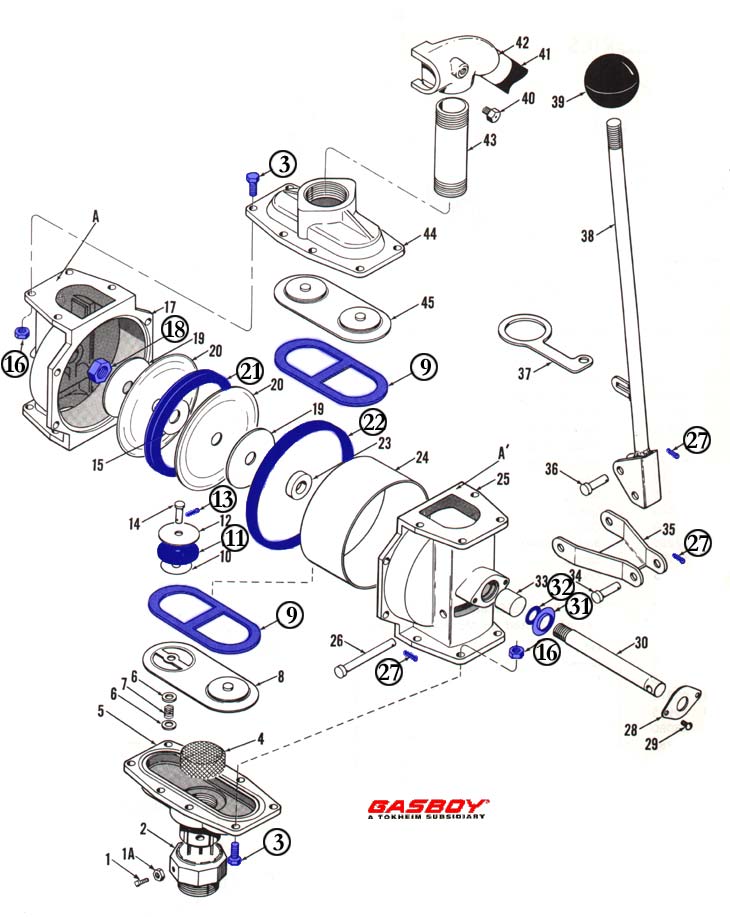

Gasboy Model 300 Hand Pump Parts and Rebuild Kit - exploded diagram

Item #	Part #	Description
1	53350	Sq. Hd. Set Screw
1A	38770	Hex Nut
2	03025	Base Adapter
3	51835	Cap Screw
4	51595	Screen
5	03485	Bottom Pump Cover (Not illus. ...Models 377, 320B)
	03115	Bottom Pump Cover (All models except 377, 320B)
5A	26861	Gasket (Not illus. ...all models except 377, 320B)
6	67195	Washer
7	57400	Valve Spring
8	47035	Valve Plate only
9	26860	Gasket
10	24165	Anti-curl Washer
11	24325	Valve Disc
12	68590	Valve Washer
13	42295	Cotter Pin
14	62515	Valve Stem
15	68725	Piston Separator
16	38860	Hex Nut
17	38860	Rear Pump Case
18	39235	Piston Nut
19	68740	Piston Reinforcer
20	46885	Piston Plate
21	49270	Piston Ring
22	27295	Pump Case Gasket
23	56875	Piston Spacer
24	23335	Cylinder
25	03420	Front Pump Case Assembly
26	42175	Saddle Lever Pin
27	42310	Cotter Pin
28	46945	Retaining Plate
29	52810	Screw
30	50365	Piston Rod
31	54160	Shaft Seal
32	49195	"0" Ring
33	34675	Bearing Liner
34	43090	Saddle Lever Pin
35	34915	Arm Linkage
36	43015	Piston Rod Pin
37	10765	Lock Arm
38	33790	Lever Assembly
39	29380	Ball Handle
40	66570	Vacuum Breaker Assembly
41	30460	Hose Assembly
42	03880	Hose Drain Valve Body
43	38035	1" Close Nipple (Not illus. ...used on hose-equipped models)
	44590	1" x 6" Nipple (used on Models 325, 345, 355)
44	03485	Top Pump Cover
45	66985	Valve Assembly
46	64856	Telescoping Suction (Not illus.)
47	38440	Nozzle & Strainer Assembly (used on all hose-equipped models)...
48	63310	Strainer only

Gasboy 032886 300 Series Hand Pump Rebuild Kit
$61.00
032886
