Note: Part# 12085 - Reset Lever Seal - is included in the Gasboy rebuild kit
032885, but not pictured in the diagram.
Part# 52840 - Phillips hd. Screw - is included in the Gasboy Rebuild kit 032885, but not in the diagram.
Click

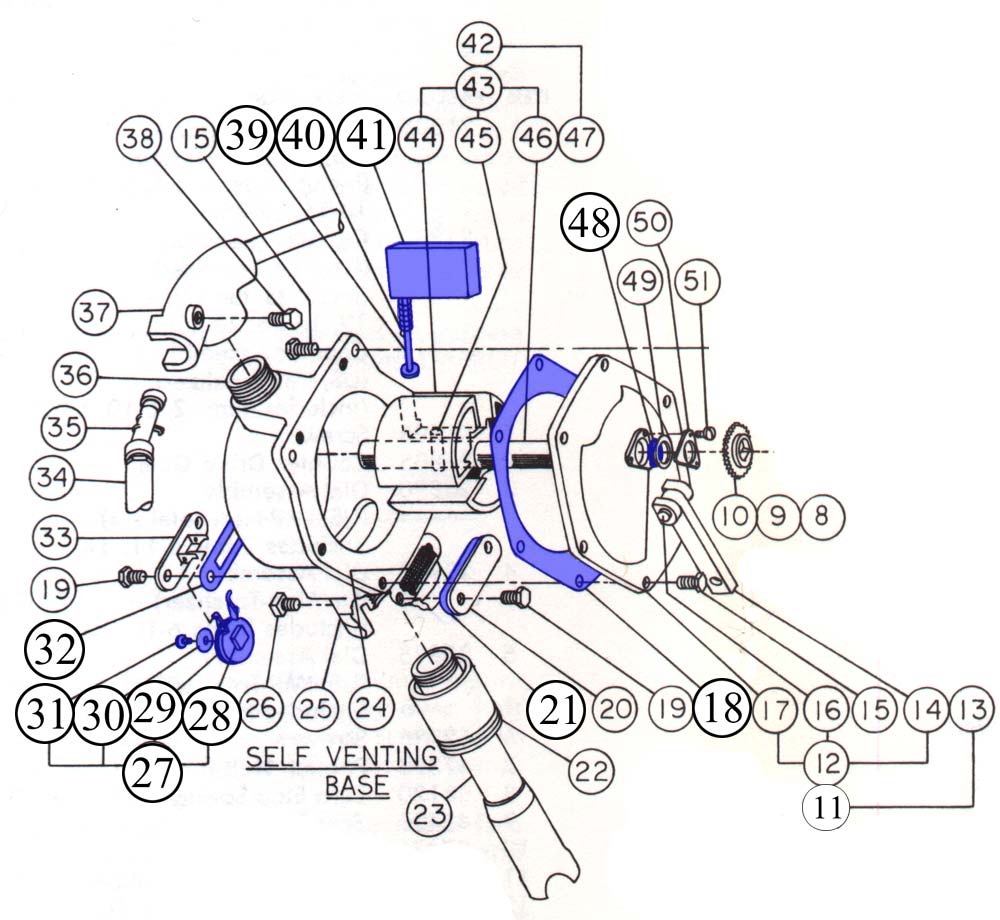

here (1000 X 920 px/ 110K .jpg) for larger more detailed diagram.
Contact us for availability
of items that are not highlighted.
| Item # |
Part # |
Description |
|
12085 |
Reset
Lever Bearing |
| 8 |
27852 |
Drive
Gear-US (1200R Series) |
| 9 |
27851 |
Drive
Gear-IMP (1200R Series) |
| 10 |
43525 |
Drive
Gear-Ltr. (1200R Series) |
| 11 |
22766 |
Pump
Cover Assembly (1200 Series)(Includes items 13, 16-17) |
| 12 |
22765 |
Pump
Cover Assembly (1200 Series)(Includes items 14, 16-17) |
| 13 |
10737 |
Lock
Arm (1200 Series) |
| 14 |
10750 |
Lock
Arm (1200 Series) |
| 15 |
51895 |
Screw |
| 16 |
49585 |
Rivet |
| 17 |
03480 |
Pump
Cover |
| 18 |
26830 |
Pump
Cover Gasket |
| 19 |
51880 |
Screw |
| 20 |
22915 |
Strainer
Cover |
| 21 |
27355 |
Gasket |
| 22 |
45520 |
Pipe
Nipple (1230, 1230R, 1235, 1235R) |
| 23 |
64856 |
Telescopic
Suction (1230, 1230R, 1235, 1235R) |
| 24 |
63280 |
Strainer |
| 25 |
03405 |
Pump
Case (1200, 1200R Series) |
| 26 |
53335 |
Set Screw
(1200, 1200R Series) |
| 27 |
66670 |
Check
Valve Assembly (Includes items 28-31) |
| 28 |
12760 |
Check
Valve Body |
| 29 |
34340 |
Valve
Disc |
| 30 |
67315 |
Washer |
| 31 |
52990 |
Screw |
| 32 |
26995 |
Check
Valve Gasket |
| 33 |
22376 |
Check
Valve Cover |
| 34 |
30460 |
Hose
(1200, 1200R 1230, 1230R, 1250,
1250R, 1260, 1260R) |
| 35 |
03785 |
Nozzle
(1200, 1200R, 1230, 1230R, 1250, 1250R, 1260, 1260R) |
|
38455 |
Nozzle
(Optional) Automatic Shut Off |
|
38441 |
Nozzle
(Optional) Unleaded |
| 36 |
38035 |
Pipe
Nipple |
| 37 |
03880 |
Hose
Drain Valve Body |
| 38 |
66570 |
Vacuum
Breaker |
| 39 |
42865 |
Guide
Pin |
| 40 |
58105 |
Spring |
| 41 |
67015 |
Vane |
| 42 |
55497 |
Shaft
Rotor Assembly (1200 Series) (Includes items 44-45, 47) |
| 43 |
55495 |
Shaft
Rotor Assembly (1200 Series) (Includes items 44-46) |
| 44 |
03830 |
Rotor |
| 45 |
43240 |
Spirol
Pin |
| 46 |
54460 |
Pump
Shaft (1200 Series) |
| 47 |
55361 |
Pump
Shaft (1200 Series) |
| 48 |
48955 |
O-Ring |
| 49 |
54160 |
Shaft Seal |
| 50 |
22481 |
Seal Cover |
| 51 |
52975 |
Screw |
| 52 |
51790 |
Screw (1200 Series) |
| 53 |
49405 |
Retaining Ring (1200
Series) |
|
