Gasboy Model 70 / 1800 Parts
 |
|

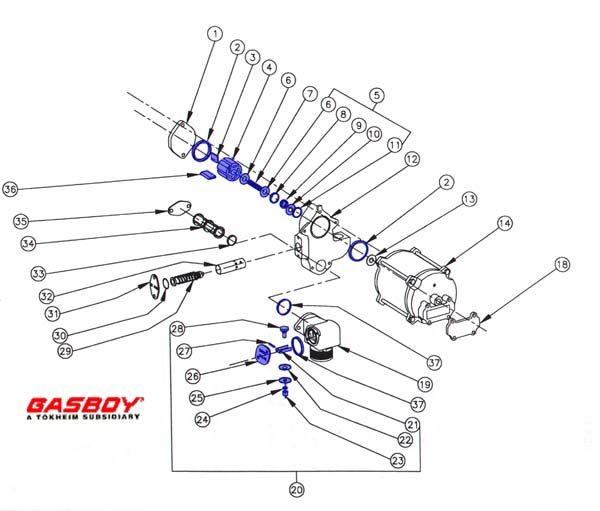

Click
here (1000 X 853 px/ 70K .jpg) for larger more detailed diagram
Contact us for availability
of items that are not highlighted.
| Item # |
Part # |
Description |
| 1 |
003490 |
Pump Cover |
| 2 |
049004 |
Square-Ring |
| 3 |
031285 |
Key, 70 |
| 4 |
051475 |
Rotor |
| 5 |
054024 |
Seal Group (Consists of items 6- 11) |
| 6 |
067210 |
Washer |
| 7 |
057956 |
Spring |
| 8 |
048940 |
O-Ring |
| 9 |
049510 |
Rotating Seal Ring |
| 10 |
048820 |
Floating Seal Ring-Carbon |
| 11 |
048955 |
O-Ring |
| 12 |
003210 |
Pump Block |
| 13 |
049525 |
Slinger Ring |
| 14 |
F37332 |
Motor, 115V, 60 cycle, 70 |
| |
F37697 |
Motor, 115V, 60 cycle, 1800 |
| |
F37616 |
Motor, 230V, 50 cycle, 70 |
| |
F37461 |
Motor, 230V, 50 cycle, 1800 |
| 18 |
S00003 |
Cover, Junction Box |
| 19 |
003065 |
Base |
| 20 |
066655 |
Check Valve Assembly (items 21-25 &28) |
| 21 |
029155 |
Valve Guide |
|
029005 |
Valve Guide, 1800R |
| 22 |
068680 |
Washer |
| 23 |
038980 |
Hex Jam Nut |
| 24 |
068650 |
Wahser |
| 25 |
024356 |
Valve Disc |
| 26 |
022271 |
Check Valve Cover Assy. |
| 27 |
042370 |
Cotter Pin |
| 28 |
062620 |
Valve Stem w/Relief Valve |
| 29 |
062335 |
By-Pass Stem Assy. |
| 30 |
049001 |
Square Ring |
| 31 |
022315 |
By-Pass Cover |
| 32 |
065725 |
Tube |
| 33 |
049002 |
Square Ring |
| 34 |
063268 |
Strainer |
| 35 |
022900 |
Strainer Cover |
| 36 |
067030 |
Vane |
| 37 |
049003 |
Square-Ring |
|
|
|
Gasboy 032888 Pump Rebuild Kit (1800, 390, 70 Series)
$71.72
032888
Kit includes parts to refresh your 115V pump to like new performance.
- Rotor
- Vanes
- Fiber Keyway
- Shaft Seal
- Gaskets
- Instruction Sheet
|
|
