Gasboy Model 1520 & 1720 Parts

Gasboy Model 1250 / 1750 Hand Pump Parts, Piston Rebuild Kit, Diaphragm Rebuild Kit

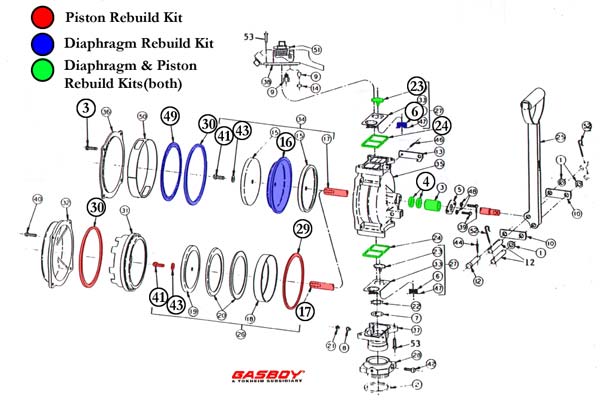

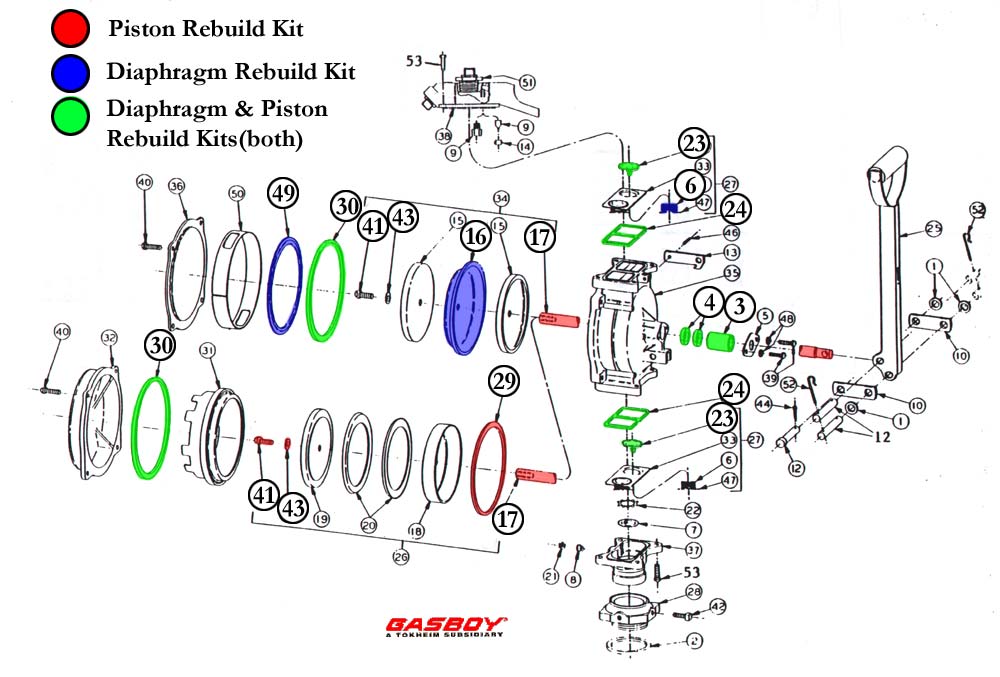

Click here (1000 X 677 px/ 84K .jpg) for larger more detailed diagram

Item #	Part #	Description
1	068937	Thrust Washer
2	027367	Gasket (Bung Adaptor)
3	048252	Bearing
4	048249	Packing
	040046	Packing (seal)
5	048254	Bearing Plate
6	048254	Valve Spring
7	048260	Suction Screen
	051616	Suction Screen
8	048253	Fire Screen
	051613	Fire Screen
9	048266	Vacuum Breaker
	066528	Vacuum Breaker Assy.
10	034916	Connectiong Link
12	043020	Pin 1-15/32" long
13	020641	Clasp
14	048264	Retainer
15	048271	Diaphragm Retainer
16	048272	Diaphragm
17	048270	Shaft
	055895	Shaft
18	045662	Piston Retainer
	045660	Piston Retainer
19	045663	Piston Retainer
	045661	Piston Retainer
20	045705	Piston Cup
21	048297	Push-On Ring
	049531	Push-On Ring
22	048287	Push-On Ring
	049532	Push-On Ring
23	048288	Valve
	066941	Valve
24	048289	Valve Gasket
	054150	Small Valve Seal
25	029398	Handle and Grip Assembly
26	045701	Piston Assembly
	045702	Piston Assembly
27	048278	Valve Assembly
	066942	Valve Assembly
28	026116	Bung Adaptor (includes 2 of item 42)
29	027368	Gasket
	054092	Seal Ring Assembly
30	048243	Gasket
	054086	Cover Seal
31	003927	Piston Cylinder
32	003056	Piston Cover
	023060	Piston Cover
33	048247	Valve Plate
34	048247	Diaphragm Assembly
35	048277	Pump Body
36	048245	Cover
37	026031	Inlet Fitting
38	003005	Fitting (1" vertical outlet)
	026056	Fitting (1" vertical outlet)
	026032	Fitting (3/4 " side Outlet)
39	048255	1/4-20 x 3/4 Lg Slotted Head Mach Screw
40	048296	1/4-20 x 7/8 Lg Hex Head Thr'd Forming Screw
41	048268	3/8-24 x 7/8 Lg Self-Locking Screw
42	026116	1/4-20 x 3/4 Lg Square Head Cup Pt set Screw
43	068044	3/8 Lockwasher
44	042355	3/32 x 3/4 Lg Cotter Pin
46	043261	3/16 Dia x1/2 Lg Roll Pin
47	048286	Spring Retainer
48	068155	1/4 Lockwasher
	048244	1/4 Lockwasher
49	048246	Diaphragm Washer
50	017278	Diaphragm Ring
51	043019	Bushing - Hexagon
52	048490	Retainer Pin
53		1/4 - 20 x 1 Lg Hex Hd Thrd Forming Screw

Gasboy 032696 1520T Hand Pump Rebuild Kit
$114.73
032696

Gasboy 032695 1520/1420 Series Hand Pump Rebuild Kit
$49.21
032695

Gasboy 032887 1720 Series (Old Style) Hand Pump Rebuild Kit
$68.00
032887
This pump has an 8 bolt housing

Gasboy 032694 1720A/1620A Series Hand Pump Rebuild Kit
$36.24
032694
This pump has an 4 bolt housing
