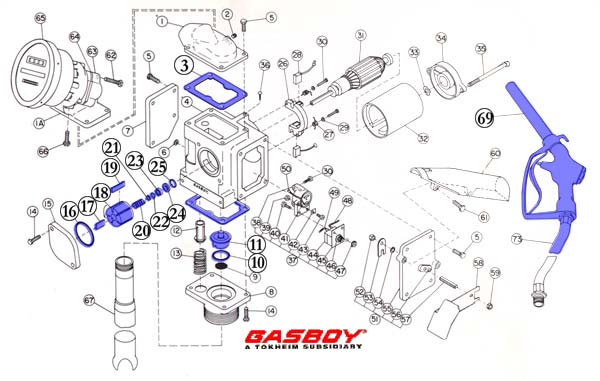

Gasboy Model 60 Parts
|
| |
|

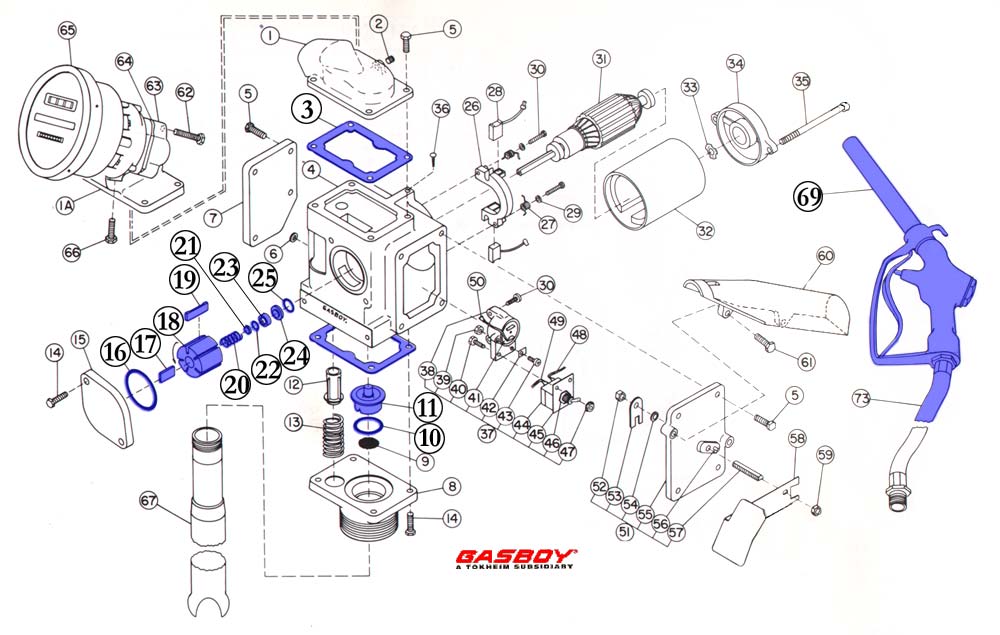

Click
here for a larger more detailed image(1000px635px: 90K .jpg)
Contact us
for availablilty of parts that are not linked.
|
| Item # |
Part # |
Description |
| 1 |
03522 |
Top Cover |
| 1A |
03047 |
Adapter (Model 60) |
| 2 |
47279 |
Pipe Plug |
| 3 |
26801 |
Gasket |
| 4 |
03759 |
Pump Housing |
| 5 |
51810 |
Machine Screw |
| 6 |
63185 |
Wire Stop |
| 7 |
04476 |
Junction Box Cover |
| 8 |
03028 |
Base Adapter |
| 9 |
51586 |
Strainer |
| 10 |
49066 |
"O" Ring |
| |
49067 |
"O" Ring (Model 66, 66X) |
| 11 |
66686 |
Check Valve Assembly |
| 12 |
66822 |
Bypass Valve |
| 13 |
57394 |
Bypass Spring |
| 14 |
51586 |
Strainer |
| 15 |
03488 |
Pump Cover |
| 16 |
48841 |
"O" Ring |
|
48844 |
"O" Ring(Model 66, 66x) |
| 17 |
31316 |
Key |
| 18 |
51482 |
Rotor |
| 19 |
67018 |
Vane |
|
32867 |
Seal Group(incl. Items 20-25). Specify if Herbicide
(Models 66 & 66x) |
| 20 |
57393 |
Spring |
| 21 |
67166 |
Washer |
| 22 |
48842 |
"O" Ring |
|
48885 |
"O" Ring(Model 66, 66x) |
| 23 |
54133 |
Rotating Seal Ring |
| 24 |
54131 |
Seal Ring |
| 25 |
48843 |
"O" Ring |
|
48846 |
"O" Ring |
| 26 |
15843 |
Brush Holder |
| 27 |
57395 |
Brush Spring |
| 28 |
15844 |
Brush Assembly |
| 29 |
67163 |
Fiber Washer |
| 30 |
52706 |
Machine Screw |
| 31 |
10946 |
Armature Assembly(12v) |
| |
10947 |
Armature Assembly (24v) |
| 32 |
35174 |
Magnet Barrel Assembly |
| 33 |
68951 |
Bearing Spring |
| 34 |
03468 |
End Cover |
| 35 |
51282 |
Tie Rod |
| 36 |
52242 |
Locating Pin |
| 37 |
37744 |
Motor Protector & Switch Assembly (12v) (incl. Items 38-50) |
| |
37746 |
Motor Protector & Switch Assembly (24v) (incl. Items 38-50) |
| 38 |
31017 |
Housing - Motor Protector |
| 39 |
39055 |
Nut |
| 40 |
52707 |
Machine Screw |
| 41 |
37743 |
Motor Protector (12v) |
| |
37745 |
Motor Protector (24v) |
| 42 |
20896 |
Retaining Clip |
| 43 |
52692 |
Screw |
| 44 |
64334 |
Switch (DPST) |
| 45 |
46957 |
Switch Plate |
| 46 |
39150 |
Lock Nut |
| 47 |
39070 |
Keps Nut |
| 48 |
69150 |
Wire Assembly |
| 49 |
69151 |
Wire Assembly |
| 50 |
69151 |
Wire Assembly |
| 51 |
64352 |
Switch Cover Assembly |
| 52 |
38920 |
Nylok Nut |
| 53 |
69687 |
Yoke |
| 54 |
67164 |
Spring Washer |
| 55 |
03469 |
Swhitch Cover |
| 56 |
43101 |
Switch Actuator Stop |
| 57 |
54439 |
Switch Shaft |
| 58 |
14697 |
Actuator |
| 59 |
38920 |
Nylok Nut |
| 60 |
03328 |
Nozzle Boot |
| 61 |
51865 |
Machine Screw |
| 62 |
52090 |
Machine Screw |
| 63 |
03645 |
Flange Outlet |
| 64 |
27055 |
Gasket |
| 65 |
35905 |
Meter & Register Assembly |
| |
35904 |
Meter & Register Assembly |
| 65A |
48430 |
Register Assembly only(U.S. Gallons-Gasoline)Specify other measure |
| 66 |
52555 |
Screw |
| 67 |
64854 |
Telescopic Suction |
| |
64849 |
Telescopic Suction(Model 66, 66x) |
| 68 |
32846 |
Telescopic Suction Kit |
| 69 |
38470 |
Nozzle
w/Hook |
|
38472 |
Nozzle-Non
leaded |
| 73 |
30311 |
Hose - 12 1/2' |
| 74 |
17399 |
Cable Assembly |
| 75 |
21730 |
Wire Connector |
|
|
|
Gasboy 032893 Pump Rebuild Kit (60 Series)
$82.00
BP-4211-03
Kit includes parts to refresh your 12V pump to like new performance.
- Check Valve Assy.
- Vanes
- Fiber Keyway
- Shaft Seal
- Gaskets
- O-Rings
- By-Pass Spring and washers
Sold Out
|
|
|
Gasboy 037744 Motor Rebuild Kit (60 Series)
$0.00
037744
Kit includes parts to refresh your 12V pump motor to like new performance.
Kit contains the following parts:
- 28 15844 Brush Assembly (2)
- 38 31017 Housing - Motor Protector
- 39 39055 Nut
- 40 52707 Machine Screw
- 41 37743 Motor Protector (12v)
- 42 20896 Retaining Clip
- 43 52692 Screw
- 44 64334 Switch (DPST)
- 45 46957 Switch Plate
- 46 39150 Lock Nut
- 47 39070 Keps Nut
- 48 69150 Wire Assembly
- 49 69151 Wire Assembly
- 50 69151 Wire Assembly
SOLD OUT
|
|
Gasboy 032934 620 Series Pump Rebuild Kit
$70.00
BP-4210-03
|
