ARK Petroleum Equipment Catalog Index Header Section

Filters - Bio Fuels

4 Types of Bio-Tek filters are now available

MICROGLASS - BMG
  • Specifically designed for renewable fuel filtration.
  • Available in 2 or 10 micron
  • Use with Ethanol-Blended Gasoline up to E20 & BioDiesel up to B20

HYDROGLASS - BHG
  • Water detection and particulate removal for Ethanol–blended gasoline up to E20 and Biodiesel blends up to B20
  • Extended life filter for high–volume renewable fuel dispensing
  • For use at high–capacity commercial fueling centers

MONITOR - MB
  • Detects phase separation and reduces flow in Ethanol blended gasoline up to E20.
  • High Performance particulate removal.
  • Available in 5, 10 and 30 micron

HIGH BIO-CONTENT - BHA
  • For use with high concentration bio-fuels, Ethanol E20 to E100, Methanol M20 to M100 & Biodiesel B20 to B100.
  • Epoxy coated housing
  • Specially plated components
  • 1 Micron specifically designed Microglass media to filter

Special adaptors are also available.
cimtek260BHG.jpg Cim-Tek 260BHG Hydroglass Spin On Fuel Filter (Case of 12) Price: $251.12

CASE OF 12 260AHS Spin-on Filters. Water Detection and Particulate Filtration for gasoline, biodiesel up to B100, and ultra-low sulfur diesel. For use on above ground storage tanks, above ground gravity flow dispensing, transfer tanks, and day-use tanks For use with low-volume commercial power pumps, commercial fueling dispensers, and agricultural pumps Specifically designed for renewable fuel filtration
Shrink Wrapped 12 to a Carton


Dimensions Features and Benefits
cimtek260BMG.jpg Cim-Tek 260BMG Microglass Spin-On Fuel Filter Price: $241.28

CASE OF 12 260BMG Spin-on Fuel Filters are designed for Particulate Removal in Ethanol-blended gasoline up to E15, biodiesel blends up to B100, and ultra-low sulfur diesel (ULSD). For use on above ground storage tanks, above ground gravity flow dispensing, transfer tanks, and day-use tanks For use with low-volume commercial power pumps, commercial fueling dispensers, and most agricultural pumps Specifically designed for renewable fuel filtration
Shrinked Wrapped 12 per carton
Dimensions Features and Benefits

cimtek260BMG.jpg Cim-Tek 260ABMG Microglass Spin-On Fuel Filter Price: $253.12

CASE OF 12 260ABMG Spin-on Fuel Filters are designed for Particulate Removal in Ethanol-blended gasoline up to E15, biodiesel blends up to B100, and ultra-low sulfur diesel (ULSD). For use on above ground storage tanks, above ground gravity flow dispensing, transfer tanks, and day-use tanks For use with low-volume commercial power pumps, commercial fueling dispensers, and most agricultural pumps Specifically designed for renewable fuel filtration
Shrinked Wrapped 12 per carton
Dimensions Features and Benefits

cimtek300bmg.jpg Cim-Tek 300BHA Bio-Tek High Bio-Content Spin-On Filter SKU: 70025 Price: $396.72

Case of 12 300BHA (1 Micron) for use with Ethanol E20 to E100, Methanol M20 to M100, and Biodiesel B20 to B100
High and low volume commercial fueling, marine fueling centers,truck stop fueling centers, and agricultural fueling centers
For use with high concentration bio fuels Shrink Wrapped 12 per carton
Dimensions Features and Benefits

cimtek300bmg.jpg Cim-Tek 300BMG Microglass Spin-On Filter SKU: 70057 Price: $189.04

Case of 12 300BGM for Ethanol blended gasoline up to E20 and biodiesel up to B20
Designed for gasoline or diesel service station pumps, commercial fueling dipsensers, most Dresser and Tokheim Service Station dispensers
Specifically designed for renewable fuel filtration
Shrink Wrapped 12 to a Carton
Dimensions Features and Benefits

cimtek300MB.jpg Cim-Tek 300MB Bio-Tek Ethanol Monitor Spin-On Filter Price: $124.80

Case of 12 300MB designed for gasoline service station pumps, commercial fueling dispensers, most Dresser and Tokheim Service Station dispensers.
Detects phase separation and reduces flow in Ethanol blended gasolines up to E20
High performance particulate removal Bio-Tek Spin-on Filters are not to be used with aviation fuels.
Shrink Wrapped 12 to a Carton
Dimensions Features and Benefits

cimtek400BMG.jpg Cim-Tek 400BHA Bio-Tek High Bio-Content Spin-On Filter SKU: 70039 Price: $347.76

Case of 12 400BHA For use with ethanol blends up to E85, methanol blends up to M100, biodiesel blends up to B100, and ultra-low sulfur diesel (ULSD). High and low-volume commercial fueling, marine fueling centers, truck stop fueling centers, and agricultural fueling centers. For use with high concentration bio-fuels
Shrink Wrapped 12 to a Carton
Dimensions Features and Benefits

cimtek400BMG.jpg Cim-Tek 400BMG Microglass Spin-On Filter Price: $194.72

Case of 12 400BGM for use with Ethanol-blended gasoline up to E15, biodiesel up to B100, & ultra-low sulfur diesel (ULSD). Designed for gasoline or diesel service station pumps, commercial fueling dipsensers, and most Gilbarco Service Station dispensers. Specially designed for renewable fuel filtration
Shrink Wrapped 12 to a Carton
Dimensions Features and Benefits

cimtek400MB.jpg Cim-Tek 400MB Bio-Tek Ethanol Monitor Spin-On Filter SKU: 70114 Price: $152.08

Case of 12 400MB designed for gasoline service station pumps, commercial fueling dispensers, most Gilbarco Service Station dispensers.
Detects phase separation and reduces flow in Ethanol blended gasolines up to E20
High performance particulate removal Bio-Tek Spin-on Filters are not to be used with aviation fuels.
Shrink Wrapped 12 to a Carton
Dimensions Features and Benefits

cimtek450.jpg Cim-Tek 450MG-10 Series High Capacity Microglass Spin On Fuel Filters SKU: 70032 Price: $299.76

Case of 12 450MG-10 for use with Ethanol-blended gasoline up to E15, biodiesel up to B100, & ultra-low sulfur diesel (ULSD). Designed for gasoline or diesel service station pumps, commercial fueling dipsensers, and most Gilbarco Service Station dispensers. Specially designed for renewable fuel filtration
Shrink Wrapped 12 to a Carton
Dimensions Features and Benefits

Cim-Tek 475XLMB-10 Series Extended Length Microglass Spin On Fuel Filters SKU: 70111 Price: $148.20

Case of 12 475XLMB designed for gasoline service station pumps, commercial fueling dispensers, most Gilbarco Service Station dispensers. Detects phase separation and reduces flow in Ethanol blended gasolines up to E20. High performance particulate removal Bio-Tek Spin-on Filters are not to be used with aviation fuels.
Shrink Wrapped 12 to a Carton
Dimensions Features and Benefits

Cim-Tek 800BHA Bio-Tek High Bio-Content Spin-On Filter SKU: 70041 Price: $373.84

Case of 6 800BHA For use with ethanol blends up to E85, methanol blends up to M100, biodiesel blends up to B100, and ultra-low sulfur diesel(ULSD). High and low-volume commercial fueling, marine fueling centers, truck stop fueling centers, and agricultural fueling centers. For use with high concentration bio-fuels
Shrink Wrapped 6 to a Carton
Dimensions Features and Benefits

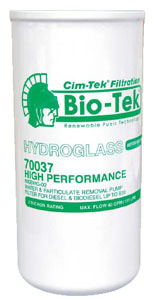

cimtek800BHG.jpg Cim-Tek 800BHG Bio-Tek Hydroglass Spin-On Filter Price: $230.80

Case of 6 800BHG Used for water detection and particulate removal for Ethanol blended gasoline up to E20 and Biodiesel blends up to B20. Extended life filter for high volume renewable fuel dispensing. For use at high capacity commercial fueling centers. Specifically designed for bio fuel filtration
Shrink Wrapped 6 per carton
Dimensions Features and Benefits

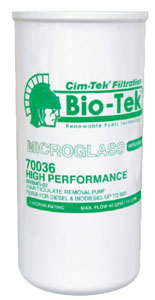

cimtek800BMG.jpg Cim-Tek 800BMG Microglass Spin-On Filter Price: $194.48

Case of 6 800BGM used for particulate removal for Ethanol blended gasoline up to E20 and Biodiesel blends up to B20. Extended life filter for high volume renewable fuel dispensing. For use at high capacity commercial fueling centers. Specifically designed for bio fuel filtration
Shrink Wrapped 6 per carton
Dimensions Features and Benefits

cimtekcenturion1.gif Cim-Tek Centurion I High Volume Filter Housing (30gpm/112lpm) SKU: 40001 Price: $135.71

The Centurion I has a single 1" npt filter housing with a replaceable element for filtration of gasoline, diesel fuel, and fuel oils. The Centurion I is designed for service stations, truck stops, and commercial high-speed dispensing applications. A nominal 10 micron element is recommended for gasoline and diesel fuels. A nominal 30 micron element may be preferred for heavier distillates such as diesel fuel and fuel oils. A nominal 2 micron element is available for greater filtration efficiency. Consult the factory for oil and methanol applications. The Centunon I is not to be used with aviation fuels.
ELEMENTS SOLD SEPERATLY
Dimensions Features and Benefits

CIMTEKcenturionIII.jpg Cim-Tek Centurion III High Volume Filter Housing (60gpm/225lpm) SKU: 40013 Price: $310.65

The Centurion III has a Dual 1 1/2" npt filter housing with a replaceable elements for filtration of gasoline, diesel fuel, and fuel oils. The Centurion III is designed for service stations, truck stops, and commercial high-speed dispensing applications. A nominal 10 micron element is recommended for gasoline and diesel fuels. A nominal 30 micron element may be preferred for heavier distillates such as diesel fuel and fuel oils. A nominal 2 micron element is available for greater filtration efficiency. Consult the factory for oil and methanol applications. The Centunon III is not to be used with aviation fuels.
ELEMENTS SOLD SEPERATLY
Dimensions Features and Benefits

cimtekcenturion4.gif Cim-Tek Centurion IV High Volume Filter Housing (90gpm/337lpm) SKU: 40020 Price: $461.85

The Centurion IV has a tripple 2" npt filter housing with a replaceable elements for filtration of gasoline, diesel fuel, and fuel oils. The Centurion IV is designed for service stations, truck stops, and commercial high-speed dispensing applications. A nominal 10 micron element is recommended for gasoline and diesel fuels. A nominal 30 micron element may be preferred for heavier distillates such as diesel fuel and fuel oils. A nominal 2 micron element is available for greater filtration efficiency. Consult the factory for oil and methanol applications. The Centunon IV is not to be used with aviation fuels.
ELEMENTS SOLD SEPERATLY
Dimensions Features and Benefits

cimtekE10.jpg Cim-Tek Centurion Series Replacement Elements (Case of 6) SKU: 30002 30004 30033 30036 30065 30195
Starting at $72.00 For a box of 6 Elements
Replacement Element for Centurion I, III, IV
Available in a viriaty of medias:
E02 Element for Particulate Removal High-Performance Microglass/Cellulose Blend
E10 & E-30 Element for Particulate Removal, 10 or 30 Micron Cellulous Media
EHS-10 & EHS-30 Element for Water Detection and Particulate Removal, 10 & 30 Micron Hydrosorb Media
E-10M Element for Particulate Removal High-Performance Microglass.
Elements include gasket, washer and filter element
Filters are not to be used with Aviation applications
Shrink Wrapped 6 to a Carton

Dimensions Features and Benefits
CIMTEKviking1.jpg Cim-Tek Viking 1 Bulk Filter Housing (120gpm) SKU: 40186 Price: $1,536.00
The Viking 1 & Viking 1F (Flanged) filter housing are capable of filtering gasoline, ethanol blends up to E15, biodiesel blends up to B100, diesel fuel, ultra-low sulfur diesel (ULSD), and fuel oils. Industrial fluids such as lubrication oils, hydraulic oils, synthetic oils, transformer oils, many solvents, and thinners may be filtered. Perfect for bulk fueling racks and bulk fluid transfer.
Requires 1 Viking Elements, Sold Seperatly
Dimensions Features and Benefits
CIMTEKviking2.jpg Cim-Tek Viking 2 Bulk Filter Housing (150gpm) SKU: 40188 Price: $1,588.00
The Viking 2 & Viking 2F (Flanged) filter housing are capable of filtering gasoline, ethanol blends up to E15, biodiesel blends up to B100, diesel fuel, ultra-low sulfur diesel (ULSD), and fuel oils. Industrial fluids such as lubrication oils, hydraulic oils, synthetic oils, transformer oils, many solvents, and thinners may be filtered. Perfect for bulk fueling racks and bulk fluid transfer.
Requires 2 Viking Elements, Sold Seperatly
Dimensions Features and Benefits
CIMTEKviking3F.jpg Cim-Tek Viking 3F Bulk Filter Housing (300gpm) SKU: 40190 Price: $6,570.00
The Viking 3F (Flanged) filter housing is capable of filtering gasoline, ethanol blends up to E15, biodiesel blends up to B100, diesel fuel, ultra-low sulfur diesel (ULSD), and fuel oils. Industrial fluids such as lubrication oils, hydraulic oils, synthetic oils, transformer oils, many solvents, and thinners may be filtered. Perfect for bulk fueling racks and bulk fluid transfer.
Requires 4 Viking Elements, Sold Seperatly
Dimensions Features and Benefits
CIMTEKviking4F.jpg Cim-Tek Viking 4F Bulk Filter Housing (500gpm) SKU: 40191 Price: $7,455.00
The Viking 4F (Flanged) filter housing is capable of filtering gasoline, ethanol blends up to E15, biodiesel blends up to B100, diesel fuel, ultra-low sulfur diesel (ULSD), and fuel oils. Industrial fluids such as lubrication oils, hydraulic oils, synthetic oils, transformer oils, many solvents, and thinners may be filtered. Perfect for bulk fueling racks and bulk fluid transfer.
Requires 8 Viking Elements, Sold Seperatly
Dimensions Features and Benefits
CIMTEKviking.jpg Cim-Tek Viking Elements Price: $32.29

Starting at $29.85 Viking Elements are available in a variety of Media and micron ratings. Cellulose Media for Particulate Removal. Hydrosorb for Water Detection and Particulate Removal. Microglass for High Performance Particle Removal with ethanol blended fuels.
Elements include gasket, washer and filter element
Dimensions Features and Benefits
Filters are not to be used with Aviation applications

cimtek50002.jpg Cim-Tek 50002 1" 200 & 300 Series Filter Adaptors Price: $14.68

Material: Cast iron adaptor
Used on: 200E, 250E, 260, & 300 series
Inlet/Outlet ports: 1"
Nose outside thread: 1"x 12 or 1 3/8"x 12 UNF
Also Available in Nickel Plated for use with 70025 300BHA High Alocol Filters

cimtek50003.jpg Cim-Tek 50003 3/4" 200 & 300 Series Filter Adaptors SKU: 50003 Price: $12.85

Material: Cast–iron adaptor
Used on: 200E, 250E, 260, & 300 series
Inlet/Outlet ports: 3/4" NPT
Nose outside thread: 1"–12 UNF
Also Available in Nickel Plated for use with 70025 300BHA High Alocol Filters

cimtek50004.jpg Cim-Tek 50004 1" 200AE & 250AE Series Filter Adaptors SKU: 50004 Price: $16.78

Material: Cast–iron adaptor
Used on: 200AE & 250AE series
Inlet/Outlet ports: 1" NPT
Nose outside thread: 1 3/8"–12 UNF

cimtek50109.jpg Cim-Tek 805 Aluminum 1" Filter Adaptor Price: $27.71
Material: Aluminum adaptor
Used on: 800 series
Inlet/Outlet ports: 1" NPT
Nose outside thread: 1 1/2" 16 UNF
Available with gauge ports
cimtek50163.jpg Cim-Tek 810 Aluminum 1 1/2" Filter Adaptor Price: $37.07
Material: Aluminum adaptor
Used on: 800 series
Inlet/Outlet ports: 1 1/2" NPT
Nose outside thread: 1 1/2" 16 UNF
Available with gauge ports
Also available in Nickel Plated for use with 70041 800BHA High Alcohol Filters
cimtek50011.jpg Cim-Tek 820 Aluminum 2" Filter Adaptor Price: $149.43
Material: Aluminum dual adaptor
Used on: 800 series Inlet/Outlet ports: 2" NPT
Nose outside thread: 1 1/2" 16 UNF
Available with gauge ports
cimtek_hydroburnG.jpg Cim-Tek Hydroburn Gasoline Fuel Treatment 32 oz Bottles SKU: 60062 Price: $285.00
Twelve 32 ounce bottles pers case. Each bottle treates 80 gallons of water.
Hydroburn fuel treatment is scientifically formulated to break the weak hydrogen bond between water molecules... and then becomes a combustible compound that liberates the water molecule as steam in the exaust.
HYDROBURN eleminates water and water related problems when applied correctly!! Period.
HYDROBURN prevents and REVERSES PHASE SEPERATION in E-10 fuel... See how it works! See the Video
HYDROBURN improves fuel quality and promotes more complete combustion.
cimtek_hydroburnD.jpg Cim-Tek Hydroburn Diesel Fuel Treatment 32 oz Bottles SKU: 60066 Price: $285.00
Twelve 32 ounce bottles pers case. Each bottle treates 250 gallons of diesel fuel.
Hydroburn fuel treatment is scientifically formulated to break the weak hydrogen bond between water molecules... and then becomes a combustible compound that liberates the water molecule as steam in the exaust.
HYDROBURN eleminates water and water related problems when applied correctly!! Period.
HYDROBURN improves fuel quality and promotes more complete combustion, increasing MPG
HYDROBURN replaces needed lubricity and cetane lost in the ULSD refining process
